Description
Technical Specifications
Dimensions
Inner: 287.5mm x 96.25mm x H | 11.32" x 3.78" x H
Outer: 296.03mm x 116.46mm x H | 11.65" x 4.58" x H
Height
27.65mm (±0.5mm)
1.09" (±0.02")
Case Thickness
30.31mm | 1.19" (back)
19.75mm | 0.78" (front)
Case Weight
794.5g
Case Angle
6 degrees
USB Port Opening
Position: Left, 10.34mm (0.41") x 4.12mm (0.16"), Teflon tape around port to prevent scratches
PCB Compatibility
Wooting 60HE, Wooting 60HE+, and all the other 60% PCB's that have the same mounting points as the 60HE. Note that your ANSI or ISO keyboard layout needs to match the case layout.
Case Material(s)
Case: All aluminium 6063
Strap: Nylon
Attachment: Synthetic leather + Gold plated Chicago Screws
Feet: Silicone
Screws: Steel (black)
Switch plate: Carbon fibre
Sandwich pad: Roger's PORON® foam
Sound dampening: Adhesive PORON® foam from INOAC
Colour & Finish

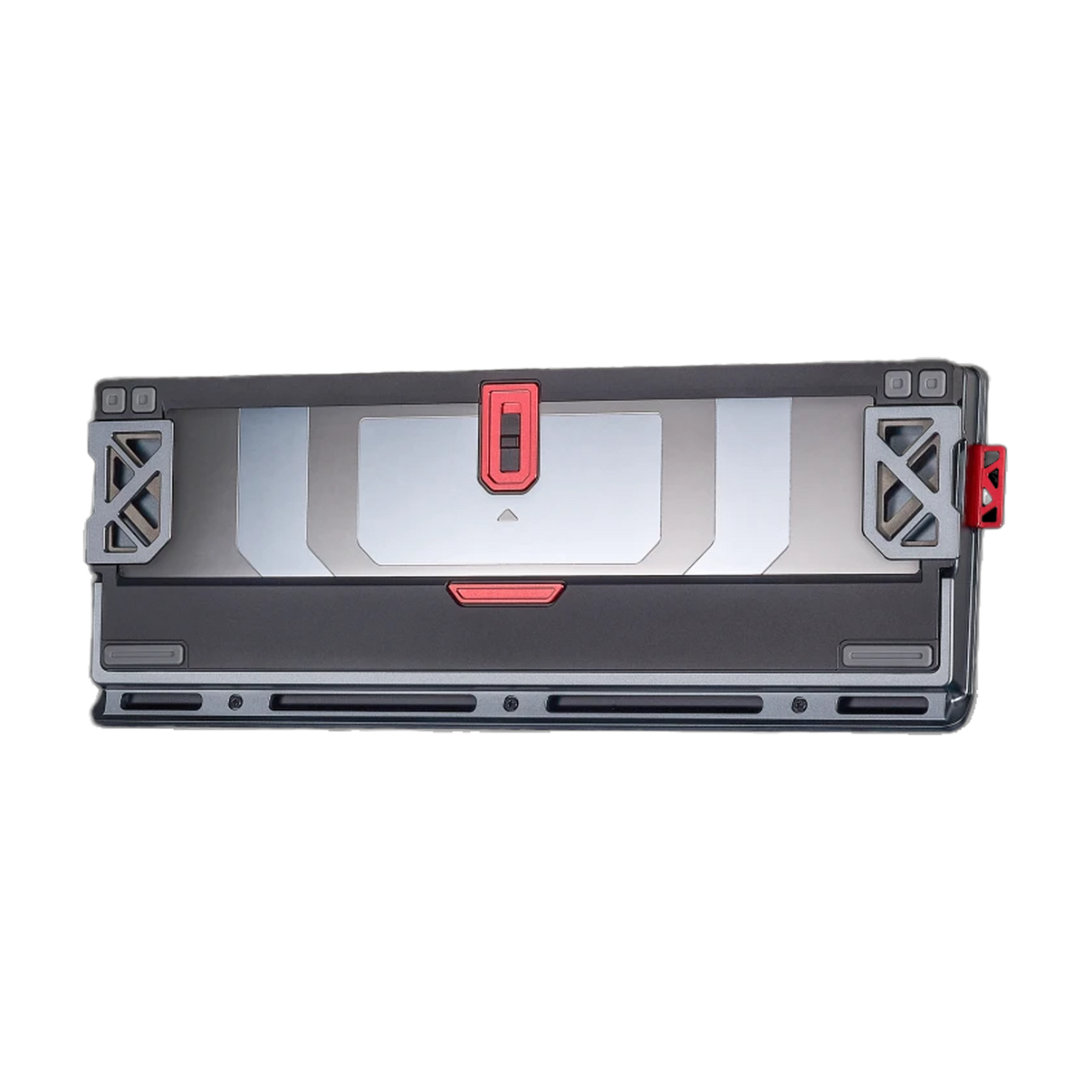

Black version:
Anodized and PVD coated parts: Black, deep gray, metallic silver, and sharp red accents.
Beige version:
Anodized and PVD coated parts: Champagne gold, silver white and bronze accents
Case Features
Suspension with switch, Many separate pieces with different anodized finishes, PVD layer on the back of the case
Keyboard Layout
ANSI or ISO
